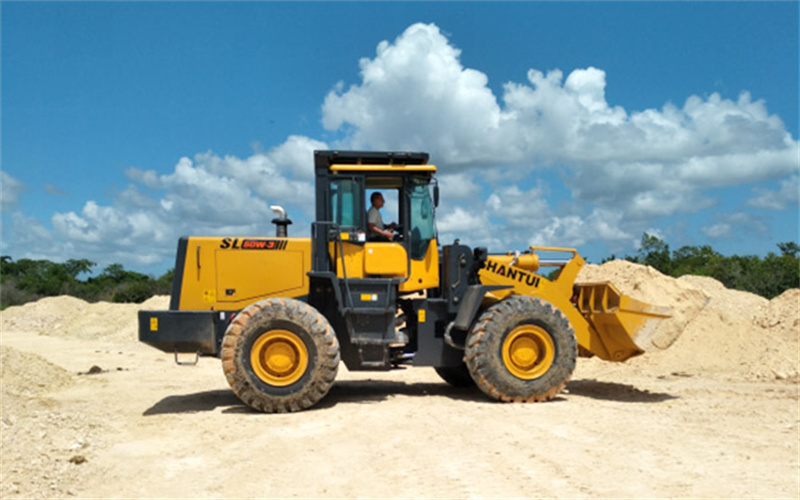

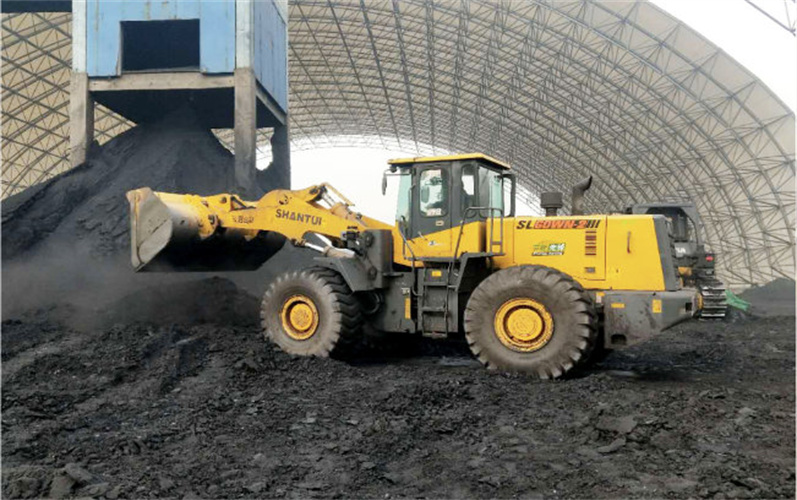

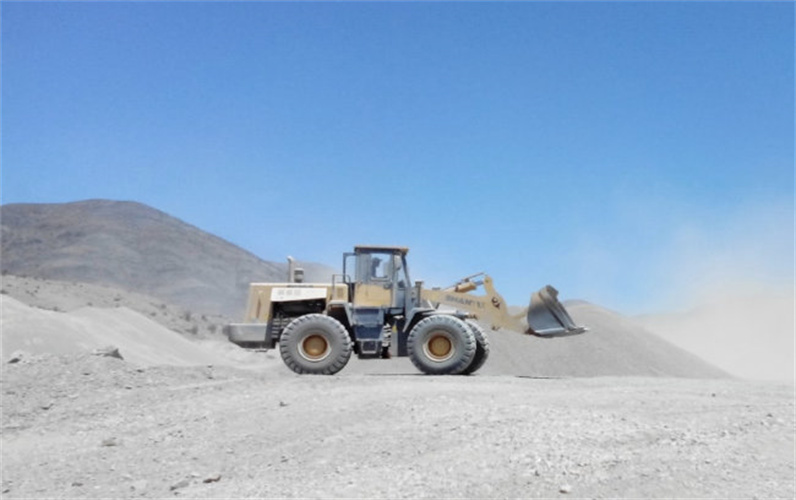

Equipment Photos
![](../../static/imagesnew/shantuiloader/l58k-1.jpg)
![](../../static/imagesnew/shantuiloader/l1.jpg)
![](../../static/imagesnew/shantuiloader/l2.jpg)
![](../../static/imagesnew/shantuiloader/l3.jpg)

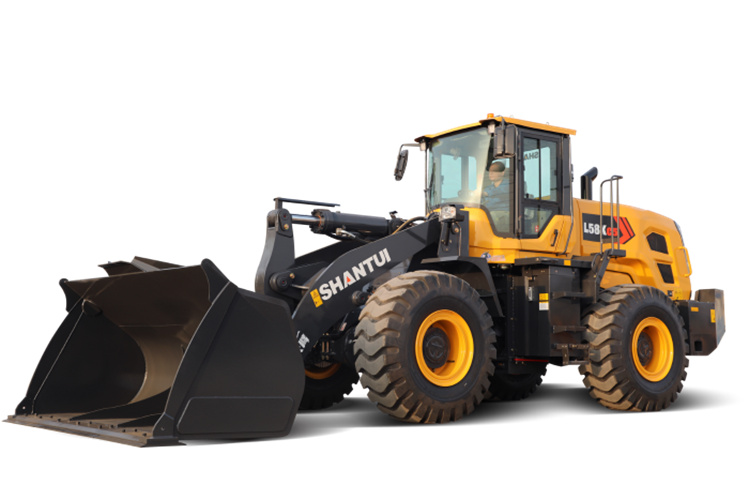

5Ton SHANTUI Wheel Loader L58K
-
Specifications
-
Overview
-
Quotation Online
5Ton SHANTUI Wheel Loader L58K
- 1. Power System: The engine is a green and environment-friendly Weichai engine with powerful power, reliable performance, energy conservation and efficiency.
- 2. Transmission systemGood power matching, smooth movement and more powerful operation; Split structure, convenient for maintenance; Convenient selection of forward and backward gear speeds, suitable for various harsh industries and mines, and faster movement.
- 3. High operating efficiency: The ultra-high loading and unloading height not only ensures superior loading performance, but also guarantees to bear greater torsional torque. The loading operation has a wide range and high efficiency. The bucket realizes automatic leveling, and the loading and unloading operation has a wide range and high efficiency. The driver has low labor intensity.
- 4. Reliable Structure: The structural parts of the main engine are optimized by finite element design. The plate structure is adopted, and the robot is automatically welded, which is resistant to load and distortion. The whole machine is solid, compact and stable.
- 5. Convenient maintenances: The side door of the upturning engine hood has a large opening and is convenient for maintenance. The front and rear frames are lubricated externally for more convenient maintenance. The grease fittings are equipped with dust caps for higher cleanliness.
Parameter name | L58K-C5 | L58K-B5 |
Performance parameters | ||
Operating weight (Kg) | 18250 | 18400 |
Maximum dumping height (mm) | 3050 | 3450 (Extended boom)3600 (Long Boom) |
Dumping reach (mm) | 1185 | 1150 (Extended boom)1180 (Long Boom) |
Maximum breakout force (kN) | ≥185 | ≥185 |
Total cycle time (s) | 10.2 | 10.2 |
Engine | ||
Engine model | WP10HG220E303 | WD10G220E23 |
Rated power/rated speed (kW/rpm) | 162/2000 | 162/2000 |
Overall dimensions | ||
Overall dimensions of machine (mm) | 8800*3066*3450 | 8640*3066*3450 |
Driving performance | ||
Forward speed (km/h) | F1:0-13,F2:0-40 | F1:0-13,F2:0-39 |
Reversing speed (km/h) | 13 | 15 |
Chassis System | ||
Wheelbase (mm) | 3300 | 3300 |
Tank capacity | ||
Fuel tank (L) | 300 | 300 |
Working device | ||
Rated bucket capacity (m³) | 3 | 3 |
Rated loading capacity (t) | 5 | 5 |
