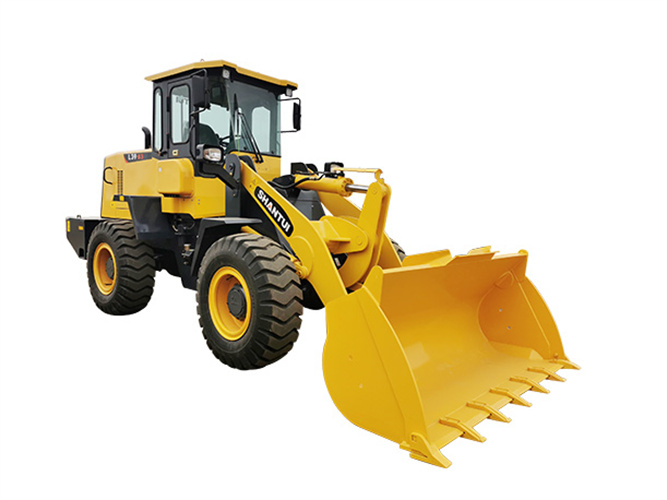

3Ton 1.8m³ SHANTUI Wheel Loader L39-B3
-
Specifications
-
Overview
-
Quotation Online
3Ton 1.8m³ SHANTUI Wheel Loader L39-B3
- Power System Weichai low-speed energy-saving engine + 5t planetary gearbox drive system feature low fuel consumption, low failure rate, and high energy-saving and efficiency.
- Driving/Riding Environment The new generation cab with all-new design optimization guarantees broader vision and more fashionable appearance. The framework structure in four sides guarantees high safety, comfort, and reliability. The extensively adjustable seat provides the driver with the most comfortable operation;It provides more abundant personalized driving/riding experience and guarantees the comfortable and safe driving/riding environment.
- Operating performance The locations of joysticks, pedals, and seat are reasonably arranged to achieve higher operating comfort. The optional pilot control system features flexible and convenient operations.
- High operating efficiency The new bucket in optimized bucket shape is applied to improve the bucket fullness rate and shoveling and loading efficiency.
- Reliable performance The structural parts, including front and rear frames and working device, are optimized and enhanced, the CAE analysis is taken for critical parts, and the main welded parts are welded by robots to ensure reliable welding quality;
- Convenient maintenances The transmission oil filler pipe is directed and the maintenance locations (Such as booster pump) are optimized to ease the routine repairs and maintenances.
Parameter name | L39-B3 SG (Sandstone version) |
Performance parameters | |
Operating weight (Kg) | 10800 |
Maximum dumping height (mm) | 3057 (Extended boom)3200 (Long Boom) |
Dumping reach (mm) | 906 (Extended boom)886 (Long Boom) |
Maximum breakout force (kN) | ≥105 |
Total cycle time (s) | 8.9 |
Engine | |
Engine model | WP6 |
Rated power/rated speed (kW/rpm) | 92/2000 |
Overall dimensions | |
Overall dimensions of machine (mm) | 7275*2518*3235 |
Driving performance | |
Forward speed (km/h) | F1:0-12.5, F2:0-38 |
Reversing speed (km/h) | R1:0-16.4 |
Chassis System | |
Wheelbase (mm) | 2900 |
Tank capacity | |
Fuel tank (L) | 150 |
Working device | |
Rated bucket capacity (m³) | 1.8 |
Rated loading capacity (t) | 3 |
