1.6Ton SDLG Wheel Loader LG916
-
Specifications
-
Overview
-
Quotation Online

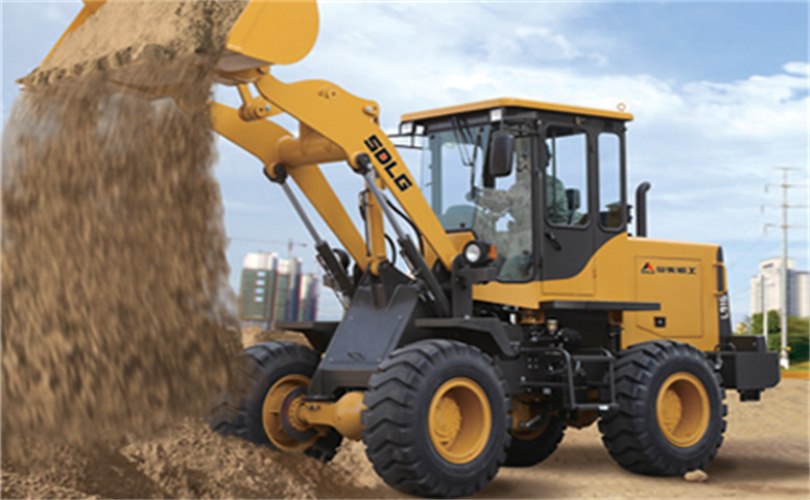

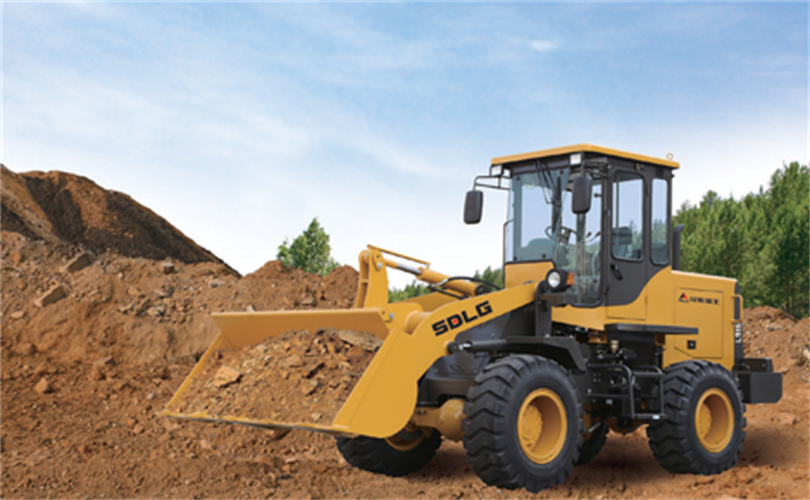

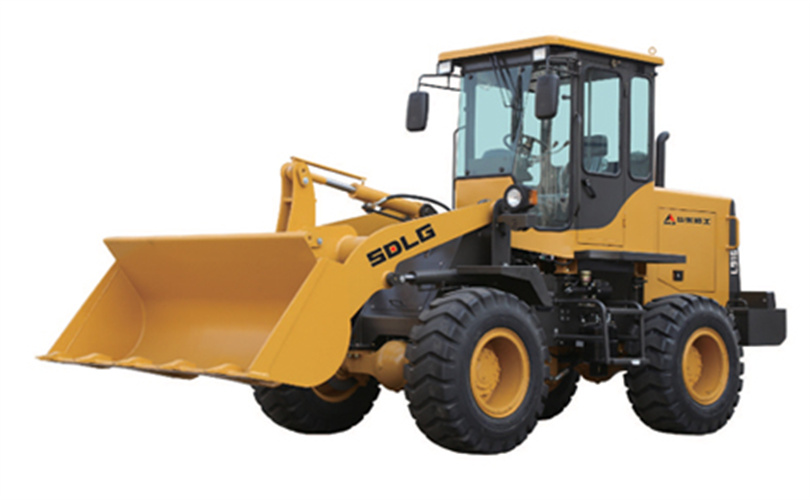

1.6Ton SDLG Wheel Loader LG916
SDLG LG916 Wheel loader is a high-end product mainly for loading and unloading loose material. The entire machine is compact,flexible in operation, of high working efficiency, more suitable for operation in narrow and small field and is widely used in places such as farms,timber yard and municipal construction.
Equipment Highlights
- • ZH4102G14-A type engine of Weichai Huafeng has the characteristics of low noise, low fuel consumption, reliable operation and long service life.
- • The adoption of single-stage single-phase three-element hydraulic torque converter equipped with axis-fixed gearbox makes full use of engine power and increases the torque, ensuring the greater traction of complete vehicle.
- • The single-plate rear frame and four-plate front frame adopt joint bearings, ensuring flexible operation and small turning radius.
- • The optimized working device provides the huge breakout force of boom, the great full coefficient of bucket and high productivity.
- • Load sensing hydraulic steering system is adopted. On the condition that the steering system is preferentially satisfied, the work device hydraulic system sharing one pump with the steering hydraulic system is supplied to reduce power consumption of hydraulic system and system power loss, and improve working efficiency.
- • Service brake control adopts the double-booster pump air over caliper disc brake, which has the characteristics of great brake power, convenient dismantling, safety and reliability.
- • With the adoption of domestic brand for key electric elements, electric system has been upgraded and improved its reliability and stability.
- • The spacious and bright fully-closed cab provides broad vision and comfortable operation environment. The reliable overall structure layout and smooth streamline offers distinctive marks and elegant appearance.
Model | 1.6Ton SDLG Wheel Loader LG916 |
Rated load(kg) | 1600kg |
Bucket capacity(m³) | 0.8m³ |
Operating weight(kg) | 5000kg |
Engine Model | Yunnei YN36 |
Rated power(kW) | 52kw |
Emission standard | China Phase II |
Fuel tank capacity(L) | 90L |
Warranty | One year warranty |
