6Ton SDLG Wheel Loader L968F
-
Specifications
-
Overview
-
Quotation Online

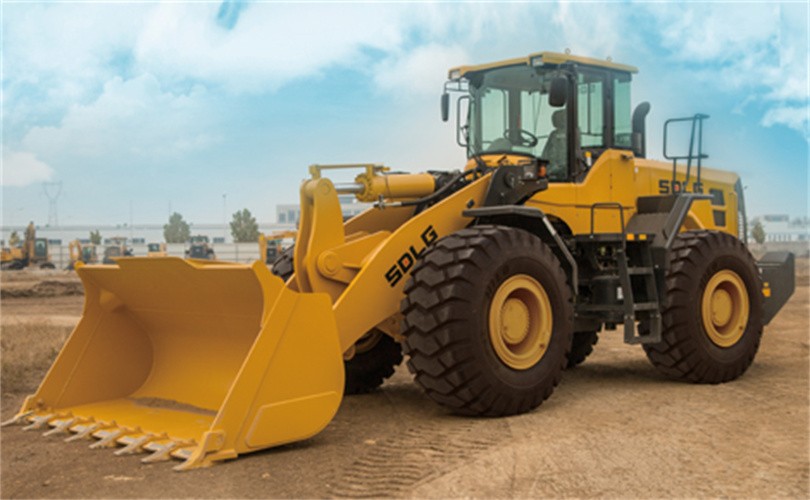

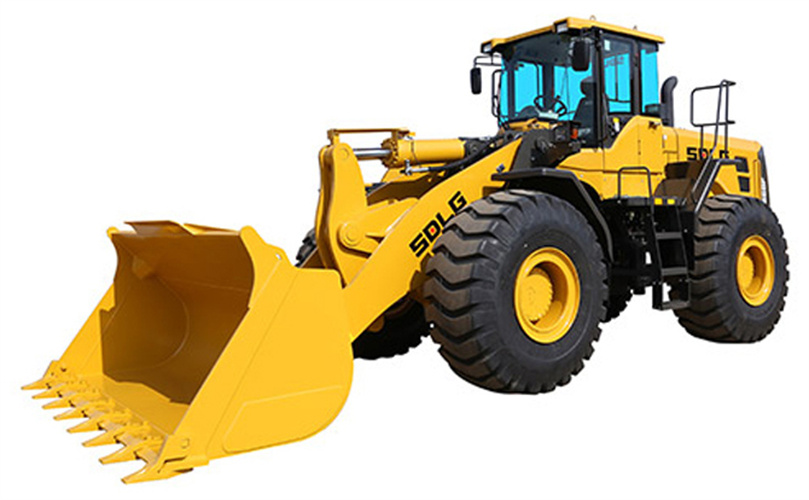

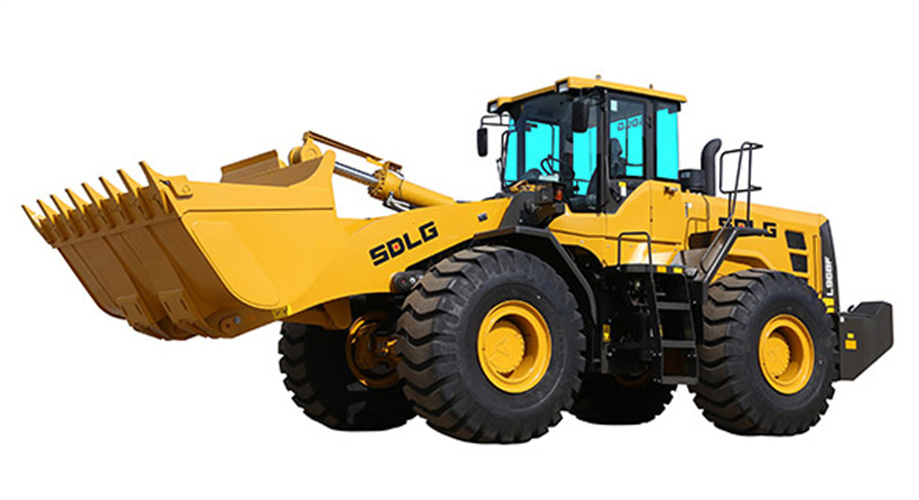

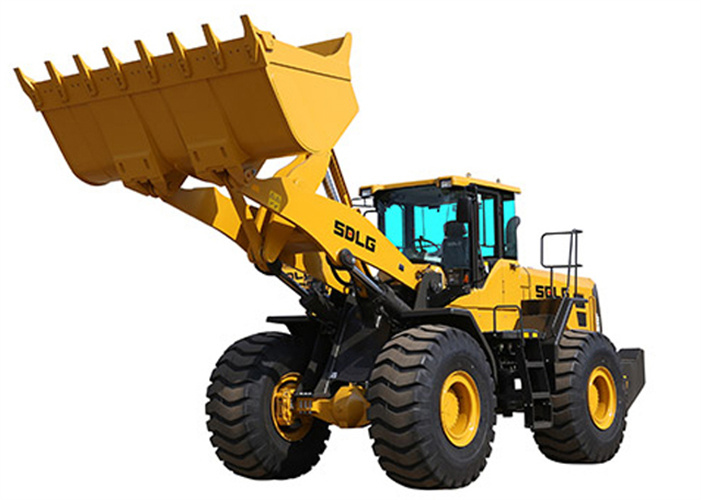

6Ton SDLG Wheel Loader L968F
L968F whee loader is a high-reliability and energy-saving loader newly designed by Shandong Lingong. The whole machine has a long wheelbase and a large breakout force. L968F whee loader is tailored for heavy working conditions such as mines and wharfs. L968F whee loader adopts a new family appearance design and is stable and heavy.
Equipment Highlights
L968F whee loader is tailored for heavy working conditions such as mines and wharfs. L968F whee loader adopts a new family appearance design and is stable and heavy.
- - 1. L968F whee loader is equipped with Weichai WD10G240E202 engine which features high power reserve, high torque, strong power, low fuel consumption, high quality, low emission and high reability.
- - 2. VRT200 gearbox is adopted with front four and rear four gear positions to render better transmission efficiency and larger transmission ratio of forward positions 1 and 2 owing to the one additional position, and its comprehensive efficiency is increased by over 8%。
- - 3. The electric control high pressure common rail engine is adopted with torque increased by 12% to provide better power performance.
- - 4. Compared to the mechanical engine, the electric control engine is characterized by low noise and small vibration, thus increasing the comfort during operation and driving.
- - 5. The engine hood and heat dissipation hood adopt the large opening design to provide larger space for maintenance.
- - 6. The oil cylinder adopts a unified design and the seals have a universal height to facilitate storage of accessories and maintenance.
- - 7. Electric system centralized control mode is adopted. The fuse and relay of the entire machine are installed in a centralized control box to facilitate inspection and maintenance.
Model | SDLG Wheel Loader L968F |
Engine Model | Weichai WD10G240E202 |
Rated power(kW) | 92 |
Operating weight(kg) | 19950kg |
Bucket capacity(m³) | 3.5 |
Rated load(kg) | 6000 |
Wheel base(mm) | 3400 |
Max.dumping height(mm) | 3250 |
Dumping distance(mm) | 1090 |
Fuel tank capacity(L) | 178 |
Warranty | One year warranty |
