5T XCMG Wheel Loader LW500HV
-
Specifications
-
Overview
-
Quotation Online

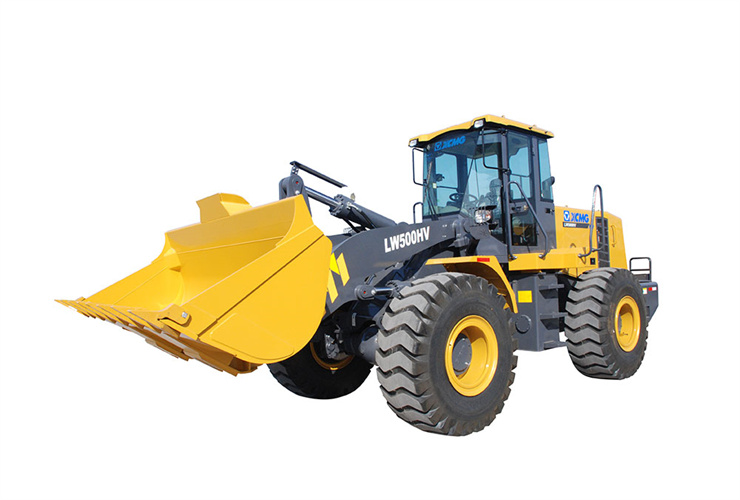

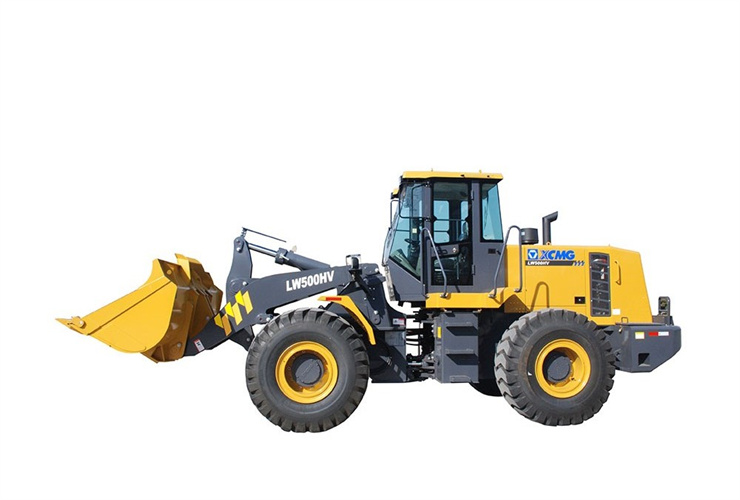

5T XCMG Wheel Loader LW500HV
LW500HV wheel loader is the leading model of the new generation of V-series energy-saving and environmentally friendly loaders built by XCMG. Based on the structural platform of XCMG's high-quality LW500KN with good market performance, LW500HV wheel loader has been improved and upgraded. W500HV wheel loader has energy-saving, high-efficiency and high reliability.
Equipment Highlights
The LW500HV wheel loader is equipped with XCMG special Weichai engine, XCMG reinforced box bridge, standard 3.0 square bucket, and optional small and large unloading booms. Shovel loading or short-distance transfer of loose materials such as loose soil, sand, and gravel has significant efficiency advantages.
- - 1. XCMG's proprietary high-torque and high-efficiency transmission chain has reasonable matching.
- - 2.XCMG's characteristic super-heavy-duty structural parts are not redundant.
- - 3.The ultra-long wheelbase leads the industry in terms of working ability and operation stability. - 4.The main hinge is centered to reduce the turning radius, tire wear and energy loss.
- - 5.The cab designed with the concept of ergonomics has an integral skeleton structure, exquisite interior, large space, sound insulation and noise reduction, and comfortable operation.
- - 6.Flexible shaft operation is more suitable for the bucket operation after loading of sand, gravel, coal and other materials.
- - 7.The traction force is 16 tons, and the high unloading capacity is ≥3.7m, which can easily cope with the dangerous working conditions.
- - 8.The lifting capacity is ≥7.5 tons, the breakout force is 17.5 tons, and various materials are lightly lifted.
Model | XCMG Wheel Loader LW500HV |
Rated bucket capacity | 2.5~4.5m³ |
Rated load | 5000kg |
Rated power | 162kW |
Operating Weight | 17000±300kg |
Unload height | 3100~3780mm |
Breakout force | 175±5kN |
Warranty | One year warranty |
